FOUNDATION OF SOMETHING SPECIAL
With an array of features including a 5 stage dimmability function, a highly tuned single-piece reflector and high-performance OSRAM LEDs, the Intensity Solis sets the standard in vehicle lighting.
SMALL BUT MIGHTY!

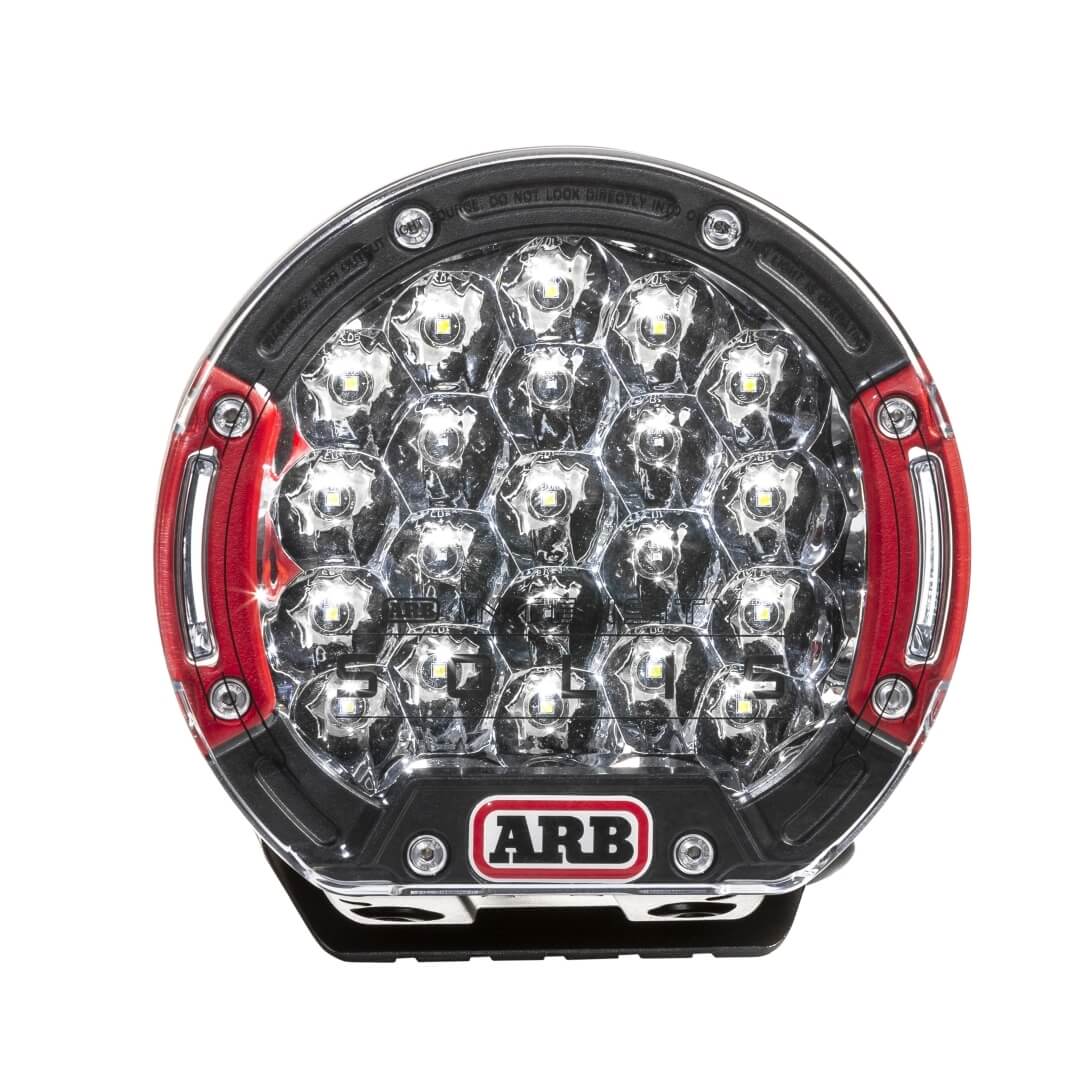

The Intensity Solis 7-inch (21 LED) flood driving lights brilliantly illuminate the foreground, providing excellent visibility to the sides of the road where animals may be hiding and through tight corners. Despite their compact size, you can rely on the ARB Intensity Solis 21 Flood Driving Lights to illuminate your path with confidence and clarity.
Continuing a tradition of never compromising, these lights feature superior-grade electronics and LEDs, first-class ARB active-thermal management, new grades of paint finishes for the bezels, and optimized lens and optic configurations. The ARB Intensity range of lights continues to set new standards in vehicle lighting.

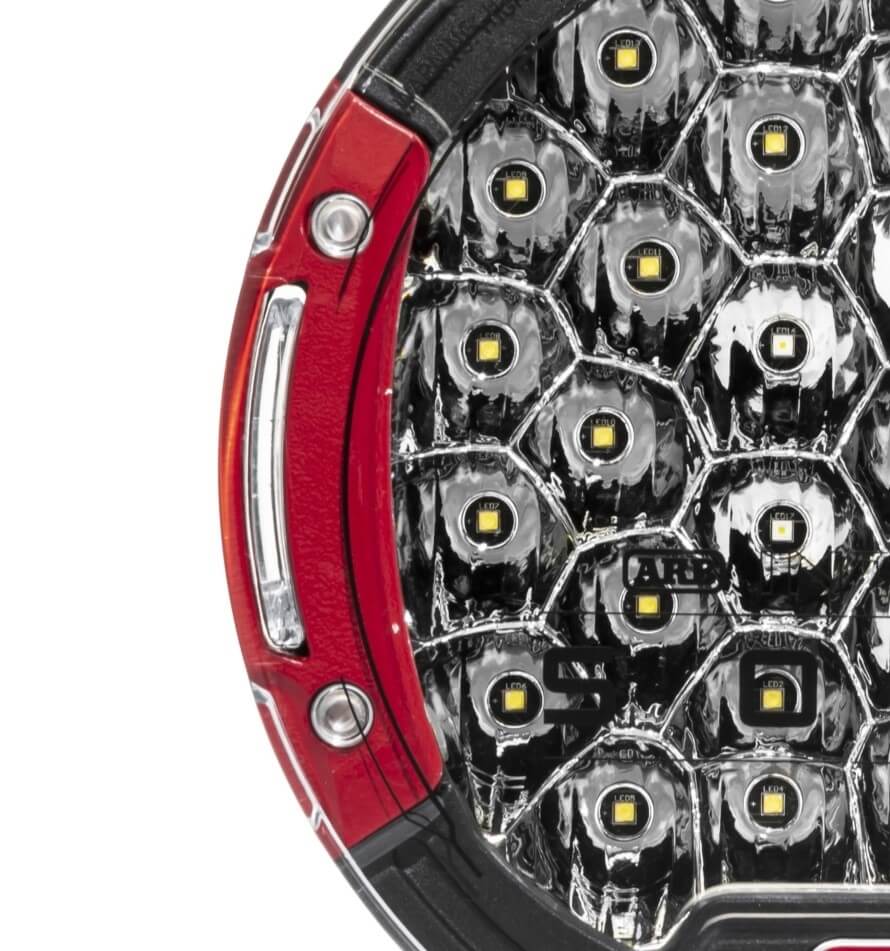

HIGH-PERFORMANCE OSRAM LEDs
Despite its smaller size, the Intensity Solis 21 packs a significant punch. They feature a combination of 6 x 5 watt and 15 x 4-watt OSRAM LEDs, with a single flood beam achieving 1 lux at 620 metres. These OSRAM LEDs provide exceptional brightness and produce clean, crisp light with a refined colour temperature. This reduces eyestrain and fatigue during long-distance driving while illuminating impressive distances down the road, enhancing safety.
FIVE STAGE DIMMABILITY VIA DIGITAL TOUCHPAD
Prioritising functionality, the Intensity Solis lights are equipped with a 5-stage dimmability switch. Given their brightness, it is essential to have a high level of control, making dim driving lights ideal for approaching highly reflective road signs and navigating low visibility conditions like dust. This feature lets users finely adjust the brightness to match driving conditions, offering enhanced control and safety.
Touchpad can be purchased through the ARB Solis Wiring Loom.
THE BREAKDOWN
Input: 10 – 30V
Power: 80W
Current Draw: 6.2A @ 13.2V
Output – Raw: 9,133 lumens
Output – Effective: 6,000 lumens
1 Lux Reading: 620m
Spread: 9 degrees
Input Cable Length: 450mm
Operating Temperature (Celsius): -40 to +65 Celsius
Operating Temperature (Fahrenheit): -40 to –149 Farenheit
Colour Temperature: 5700 Kelvin
Weight: 2.73kg (6.02lb)
Connector: 4-pin AT- waterproof plug
Dimensions (mm): 192 (w) x 190 (h) x 114 (d)
Dimensions (inches): 7.56” (w) x 7.48" (h) x 4.49” (d)
Warranty: 3 years
1 x Flood Light
1 x Clear cover
1 x Mounting Bracket
1 x Mounting hardware kit
UV-resistant interchangeable red or black bezels
DOCUMENTS
INSTRUCTION MANUALFor optimal results, we suggest having this product installed by a qualified technician. Please reach out to your local ARB store for further assistance.
SPOT, FLOOD, OR A COMBINATION?
For most drivers, a combination of one spot (driver’s side) and one flood offers ideal balance depending on terrain. The spot light delivers a strong direct beam over 1 km, while the flood light illuminates the foreground and roadside what is often considered the optimal driving light pattern and output.
COMPLETE YOUR INTENSITY SOLIS LIGHTING SET UP
ARB WIRING LOOM SOLIS
ARB’s Solis-specific Wiring Loom is meticulously designed with high-performance components to optimise the functionality of ARB Intensity Solis Driving Lights, featuring digital dimming control. It serves as an essential wiring solution for installing high-beam activated driving lights, such as the ARB Intensity Solis, on your four-wheel-drive.
ARB INTENSITY SOLIS 21 SPOT
Enhance visibility across terrains by combining the Intensity Solis 21 Flood driving light with the Intensity Solis Spot lights, maximizing illumination with both the spot's impressive throw of light and the flood light's foreground coverage.
ARB SOLIS ACCESSORIES
The ARB Intensity Solis Spot has a range of optional accessories to help complete you vehicles look while keep your lights protected in rough terrain. Intensity Solis accessories are available at your local ARB store.
